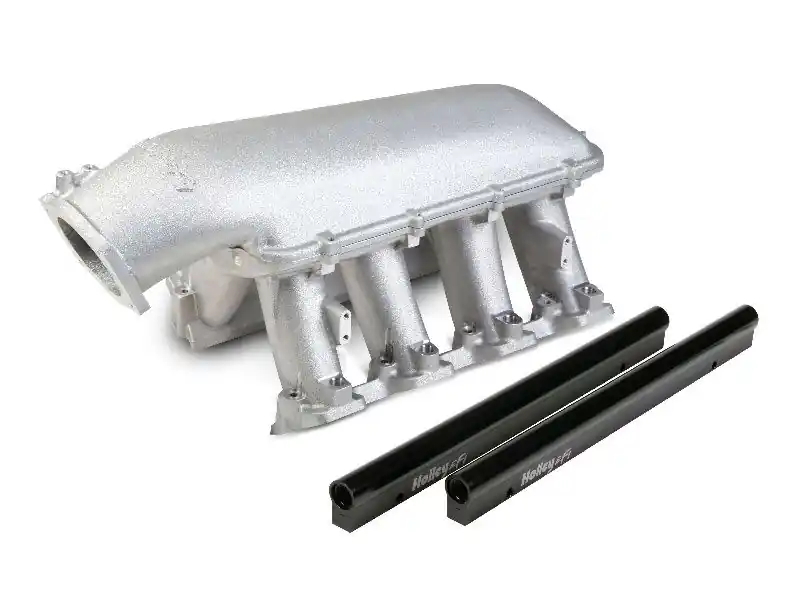

Holley Hi-Ram Silver Intake Manifold LS3, 105mm :: 2010-2015 Camaro SS Hot Deal

Features:Base Plenum Top Mounting Flange Height – 8.42″ to the lifter valley cover flange on engine block.Total Height with 92/105mm EFI Plenum Top – 12.32″ to the lifter valley cover flange on engine block.Port Size – 2.49″ Height x 1.21″ WideMounting Flange Gasket Type – Standard LS3 Molded O-RingPlenum Top Gasket Type – 3/32″ Round O-ring CordThrottle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42″ (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)Runner Length – 6.50″, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²Manifold has provisions for (1) 3/8 NPT and (2) 1/8 NPT fittings Attributes:Engine Compatibility: Chevy LS3 SeriesBasic Operating RPM – Low: 3500Basic Operating RPM – High: 8000Carburetor Count: Single 4-BarrelCylinder Block Design: StandardPort Shape: RectangularMaterial: Cast AluminumRecommended Use: RacingFuel Delivery Type: Fuel InjectedEGR: Non-EGRFinish: NaturalColor: SilverIncludes Fuel Rail: Yes  The Holley GM LS3 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited.  Coupling this Hi-Ram intake with the high flowing LS3 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, off-road, pulling trucks, track, street-rod applications and more!- The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.- Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations- EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.- Cast aluminum construction.- Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.  Note: The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.  Installation Instructions (opens in new tab): Click HERE  Emissions Disclaimer: This product is NOT CARB legal and CAN NOT ship to California.   Part Number: 300-117
